WELCOME
Play, pause and close the player using the controls on the right of the screen.
Return to the product selection screen at any time by pressing the home button.
Use the provided USB cable to charge your Control Pod.
They are flexible to adjust to your subject.
Watch the video to see how we used them to create this image.

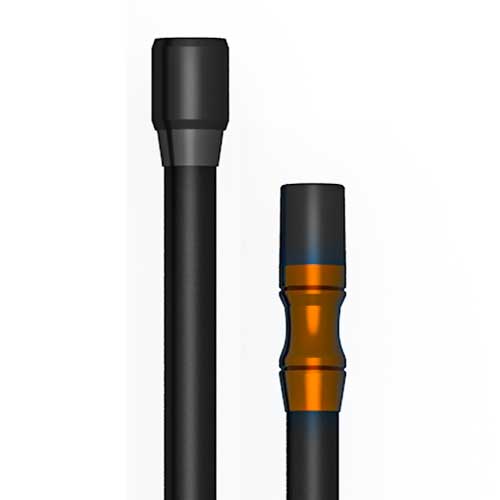

You will feel a magnetic pull, rotate the arm until it clicks into place.
The Lighting Arm will automatically illuminate at 50% brightness.
Don't twist! Just pull the arm away from the Pod.
Removing all arms turns off the Control Pod.
Simply unscrew the Lighting Arm Head to limit the beam of light.
CONTROL

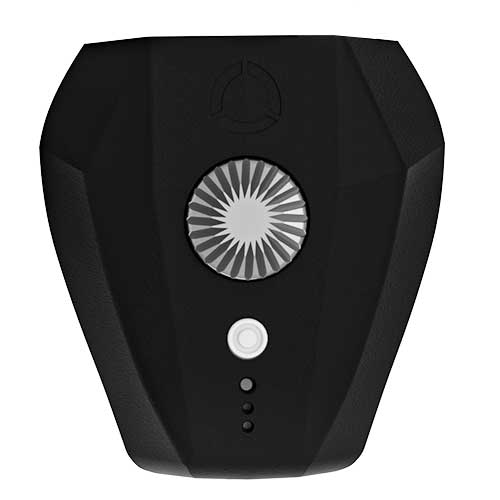

You can press the dial multiple times to select each arm in sequence.
The light at the end of the Lighting Arm will pulse to show which arm is being adjusted.
When you are happy with your new settings, leave the pod for a few seconds. The pulse will end and the pod will return to normal mode with your new brightness settings saved.
Holding the dial while not in control or Bluetooth mode will toggle boost mode on and off.
COMPONENTS
COLOUR FILTERS
CONTROL
Need more help with this step?
Enable bluetooth in your phone settings
Open the Adaptalux App on your device.
Press Connect to Control Pod to begin searching for a Pod.
To deactivate Bluetooth mode when you are finished, hold the bluetooth button again for 2-3 seconds
The indicator light will turn off once connected to the app.
When the sync options appear, choose if you would like to sync the pod's current settings to the app, or send the app settings to the pod.
Select an arm and use the slider to adjust it's power. Toggle boost mode using the switch on the top right.
When you are finished, hold the bluetooth button for 2 seconds to turn off Bluetooth mode and return to manual brightness control.
Play, pause and close the player using the controls on the right of the screen.
Return to the product selection screen at any time by pressing the home button.
Use the provided USB cable to charge your Control Pod.
You will feel a magnetic pull, rotate the arm until it clicks into place.

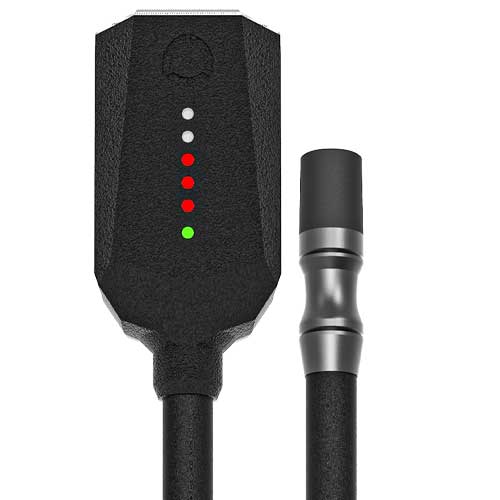

The Green light will illuminate on your flash arm once connected.
Red lights will illuminate as the Flash Arm charges.
Don't twist! Just pull the arm away from the pod.
Removing all arms turns off the Control Pod.
The Emitter is powered by 2 AAA batteries. Batteries are inserted via the battery flap.
Insert 2 AAA batteries, keeping the ribbon below the batteries for ease of removal.
Turn on the emitter using the power button.
A green indicator light will show at the rear of the Emitter when powered on.
Line of sight can be indirect if the IR pulse is able to bounce off nearby objects (like a reflector or surface).
Use the test button on the emitter to test the position of the Flash Arms.
Allow a short time between photos for the Flash Arms to recharge. This time will depend on the power setting.
The Control Pod can be mounted to the Flash Emitter for on-camera lighting.
CONTROL
Holding the dial while not in "control" or "Bluetooth" mode will toggle boost mode on and off.
Flash Arms require boost mode to be activated to access the full range of flash levels.
Fast flash speeds freeze motion and use less battery, but are less bright.
You can press the dial multiple times to select each arm in sequence.
The indicator Lights on the Flash Arm will pulse to show which arm is being adjusted.
When you are happy with your new settings, leave the pod for a few seconds. The pulse will end and the pod will return to normal mode with your new power settings saved.
