Bluetooth Mode
App Control works with the Control Pod 3.0 and can be used to control both LED and Xenon Flash Arms wirelessly.

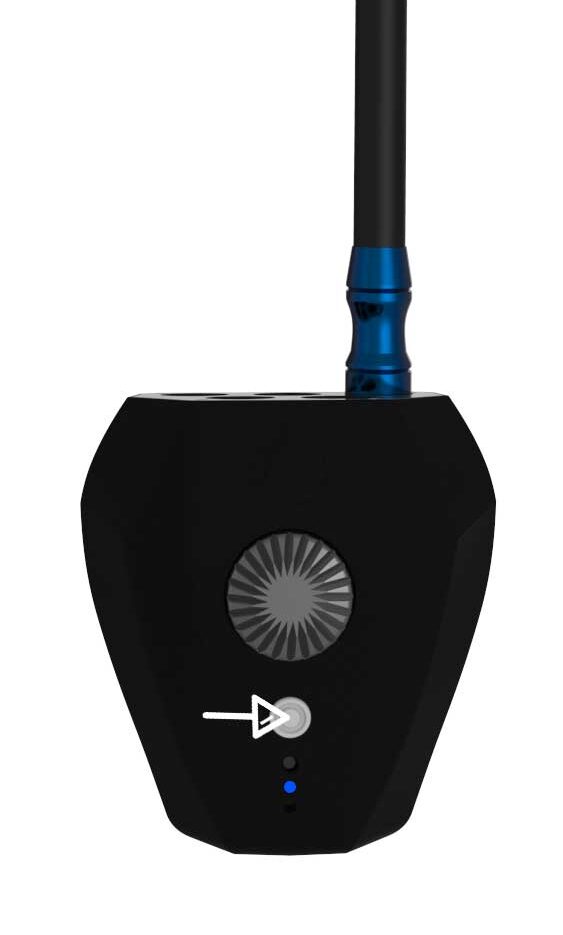

With at least one Lighting Arm connected, activate Bluetooth by pressing the bluetooth button of the Control Pod once. The pod will enter Bluetooth discovery mode. This is indicated with a solid blue light on the back of the Pod.
When the Pod is connected to the App, the blue light will go out.
To end bluetooth mode, hold the bluetooth button for 3 seconds and the blue light will go out.

Download the App
The Adaptalux App can be downloaded for free on iOS and Android. Download the app from the corresponding link below, or search Adaptalux in your devices app store.
Connecting to the App – LED Control
1 – Start by launching the app on your device. Press the + button on the top right of the screen. You will be presented with the screen as shown here.
2 – Press Connect to Control Pod, the app will begin to search for the Pod.
3 – On your Control Pod, press the bluetooth button once and a blue light will appear. The Pod will now appear on the app.
4 – Wait a few moments for the pod to communicate with the app, then select the Control Pod icon on the app (we advise to tap the pod 2 seconds after it appears).
5 – Select which settings you would like to use. Select Pod to bring the Lighting Arm settings from the Pod to the app (recommended). Select App to send the settings in your app to the Control Pod.
5 – Your app should now be connected to the pod. You can select a port on the app and then use the slider to change the power settings for that port. If using Flash Lighting Arms, use the slider to adjust and set the power level. Note: The App display is orientated as if you are looking front on to your Pod so they match.
6 – There is also now a boost mode toggle switch on the App. Toggle it on or off to remotely toggle boost mode on or off.
7 – Double tap a port to change the colour of the icon on the app, this is useful for reminding yourself of arm colours plugged in to the ports.


Connecting to the App – Xenon Flash Control
1 – Start by launching the app on your device. Press the + button on the top right of the screen. You will be presented with the screen as shown here.
2 – Press Connect to Control Pod, the app will begin to search for the Pod.
3 – On your Control Pod, press the bluetooth button once and a blue light will appear. The Pod will now appear on the app.
4 – Wait a few moments for the pod to communicate with the app, then select the Control Pod icon on the app (we advise to tap the pod 2 seconds after it appears).
5 – Select which settings you would like to use. Select Pod to bring the Lighting Arm settings from the Pod to the app (recommended). Select App to send the settings in your app to the Control Pod.
5 – Your app should now be connected to the pod. Double tap the port with the Flash Arm connected and Select the Flash Symbol. Please note that by selecting a Flash Arm, boost mode is automatically turned on. Note: The App display is orientated as if you are looking front on to your Pod so they match.
6 – The control panel on the bottom will now change from the power slider to pre-configured settings from 1-5. The Power levels indicate the Flash level on your Flash Arm. Tap on the desired Flash level, and the settings will be synched to your Flash Arm wirelessly.


Additional Resources
Adaptalux Studio information:ย Adaptalux Lighting Studio
Video Demo and Tutorials –ย Adaptalux Studio Demo
Bluetooth Troubleshooting –ย Q: Can’t connect to Bluetooth
