Continue XENON FLASH More info (Opens in new tab)

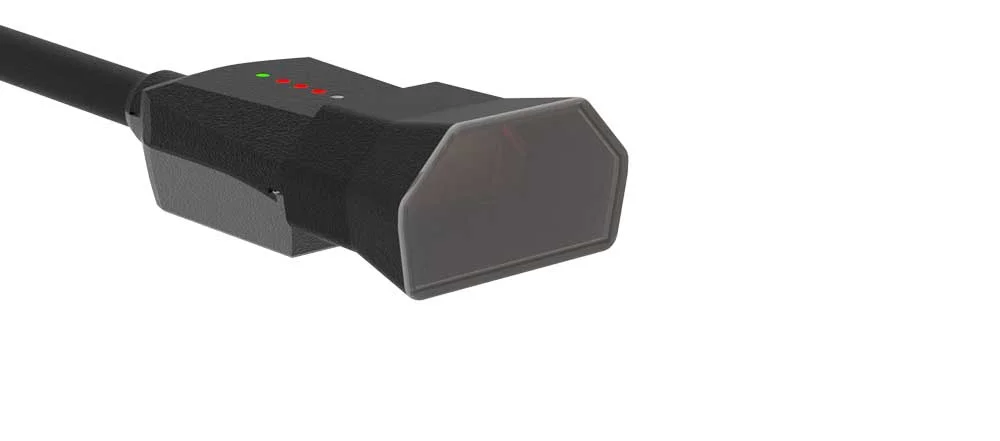

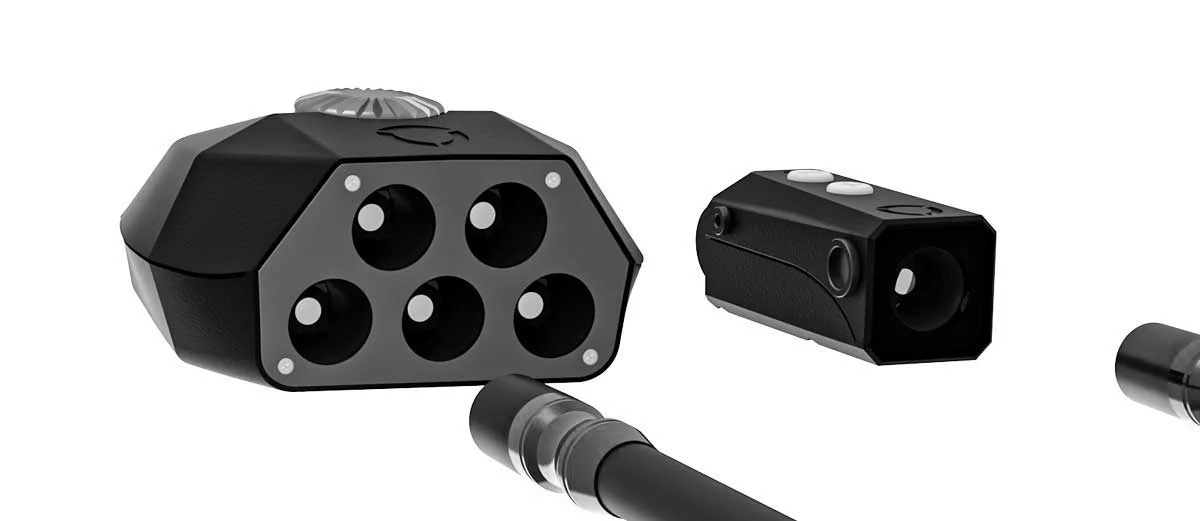

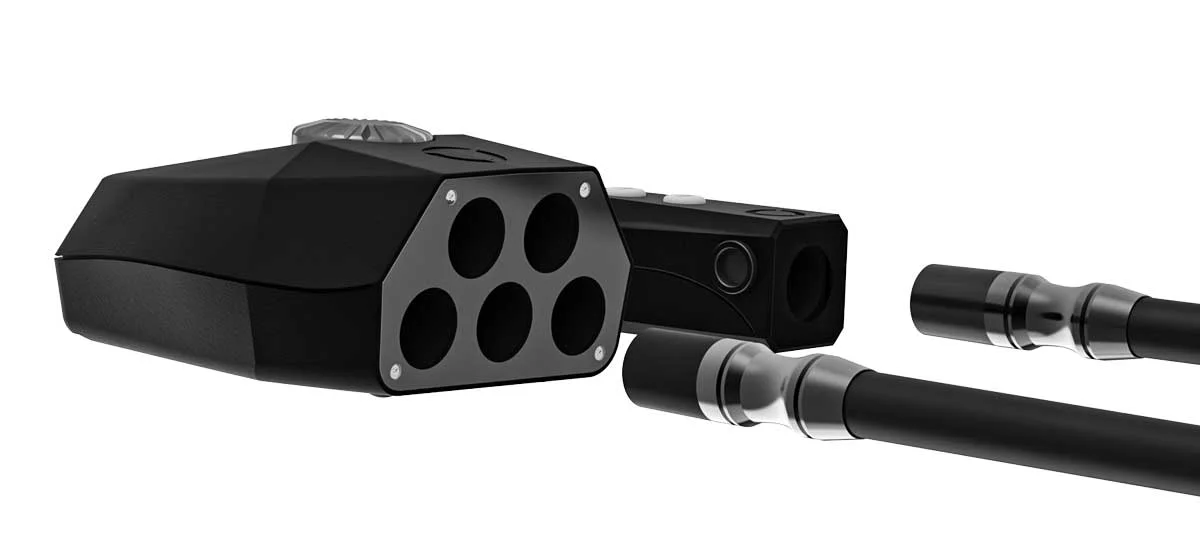

 Lighting Arms plug into the ports on the front of a Pod 3.0 or Mini.

They are flexible for adjusting to your subject.

Xenon Flash Arms are used in combination with the Flash Trigger.

Flash Arms have built in memory, to save your last used Flash settings between sessions.
 QUICK START XENON FLASH Continue LIGHTING ARMS More info (Opens in new tab)

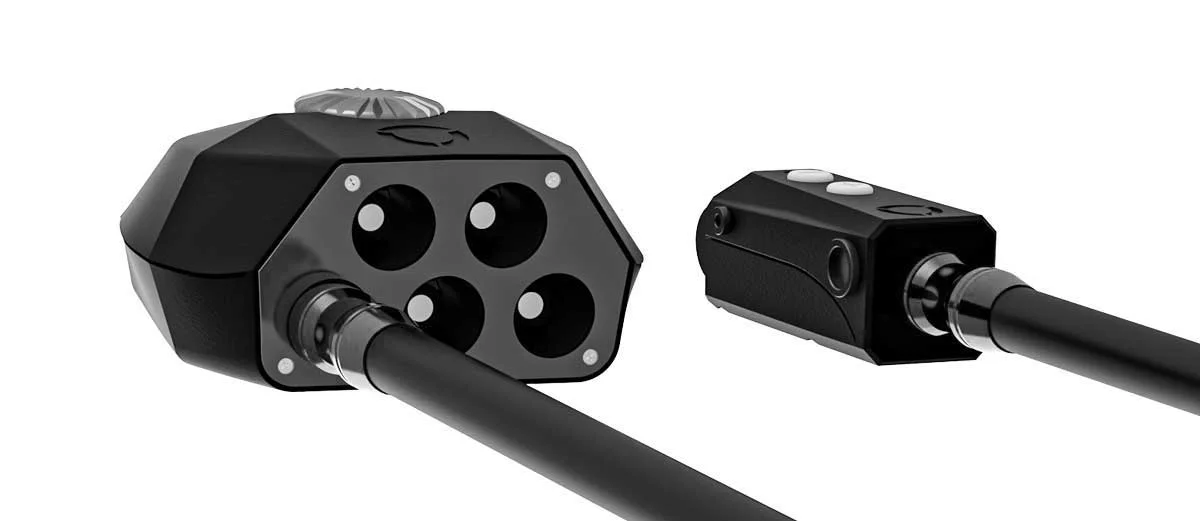

 Make sure the contacts are clean and free from obstruction.

You will feel a magnetic pull, rotate the arm until it clicks into place.

The green light on the flash head will illuminate once connected.

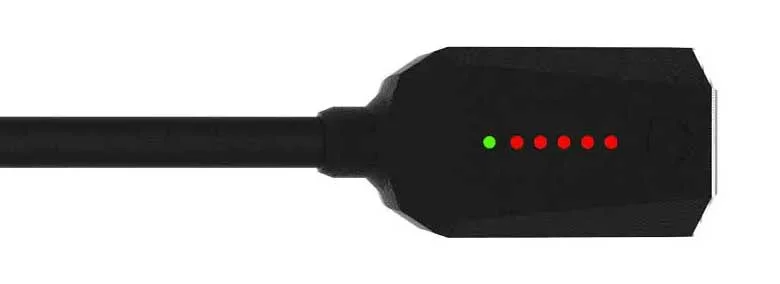

Sequential Red lights will illuminate as the Flash Arm charges, this may take up to a minute on first charge. QUICK START XENON FLASH Continue BOOST MODE More info (Opens in new tab)

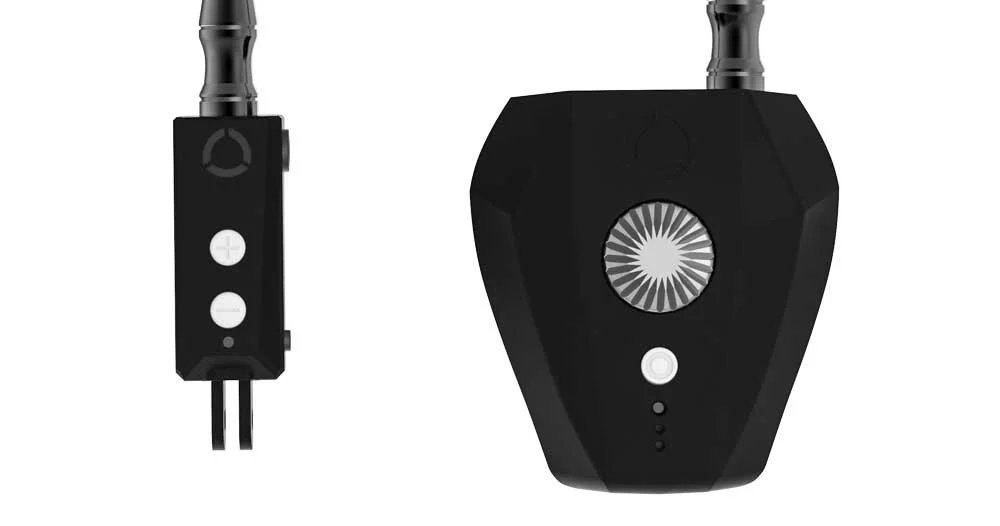

 Pods have a boost function that provides more power to connected Arms.

Flash Arms require boost mode to be activated at all times.

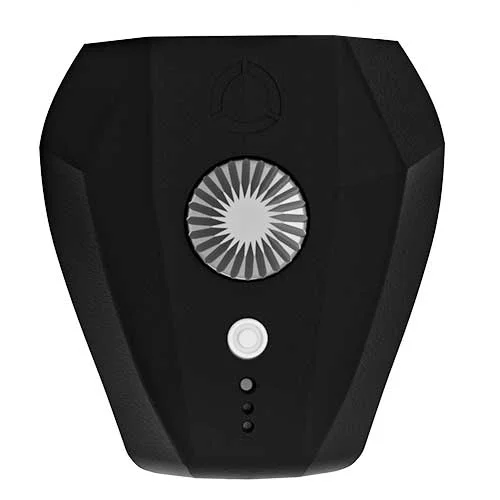

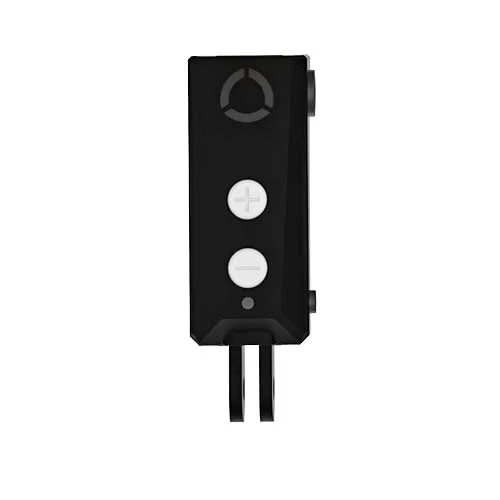

Activate boost mode by pressing both buttons once (Pod Mini), or holding the dial (Pod 3.0).

We also recommend turning the power of the Port to 100% for optimum re-charge times.

If using multiple Flash Arms in the Pod 3.0, we recommend waiting 1 minute between
plugging in each Arm, to allow for sufficient charging. QUICK START XENON FLASH Continue INDICATOR LIGHTS Loading

(Please Wait) More info (Opens in new tab)

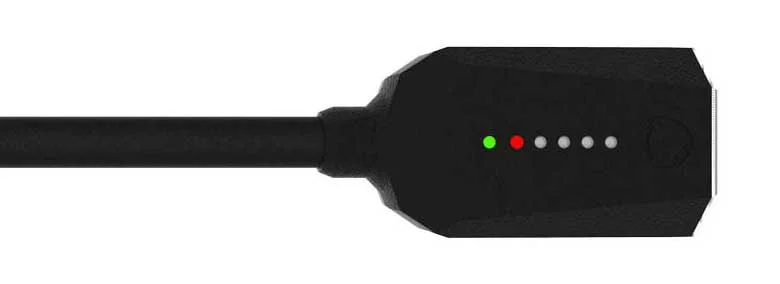

 Power On

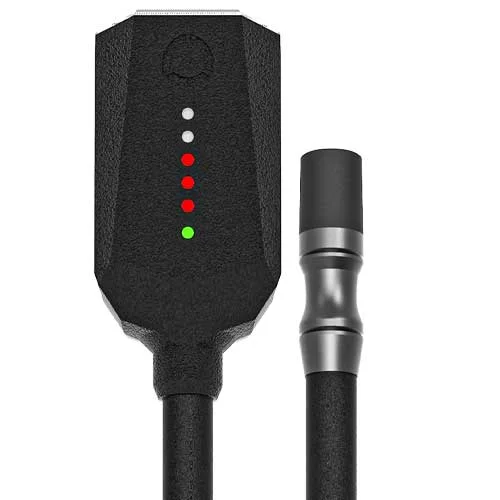

(Solid Green Light) The Flash Lighting Arm has a series of lights, that indicate it's state once connected. Ensure boost mode is turned on when using your Flash Arms. Low Power

(Turn on Boost) Initial Charge

(Please Wait) QUICK START XENON FLASH
 Ready

(Dim - Recycling) LEARN MORE Continue SPEED & POWER More info (Opens in new tab)

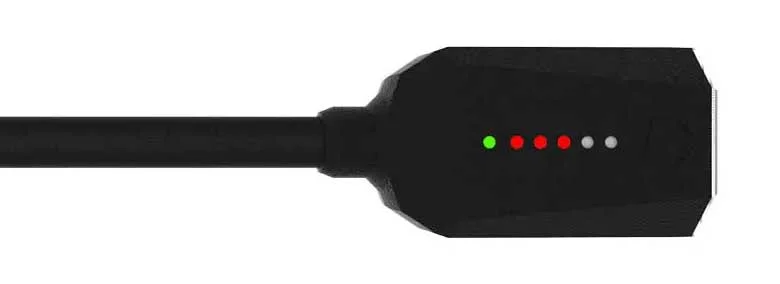

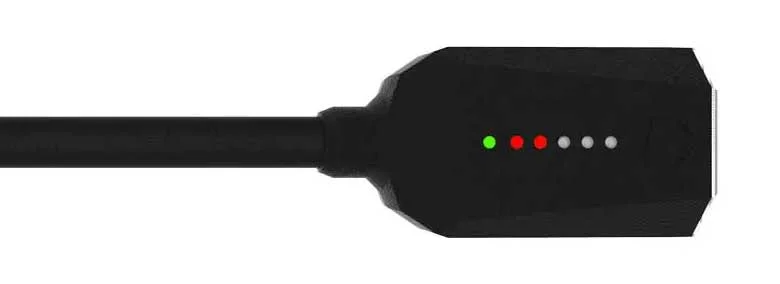

 Red lights indicate the power level and speed of the flash.

Level 1 is the fastest Flash, but less power. Level 5 is the slowest flash, but most power.

Fast flash speeds freeze motion more effectively, use less battery and recycle faster.

Slow flash speeds use more power but are brighter.

The Flash Power level can be selected by using the Control Button underneath the Flash or
wirelessly via the App (iOS only). QUICK START XENON FLASH Continue CONTROL BUTTON More info (Opens in new tab)

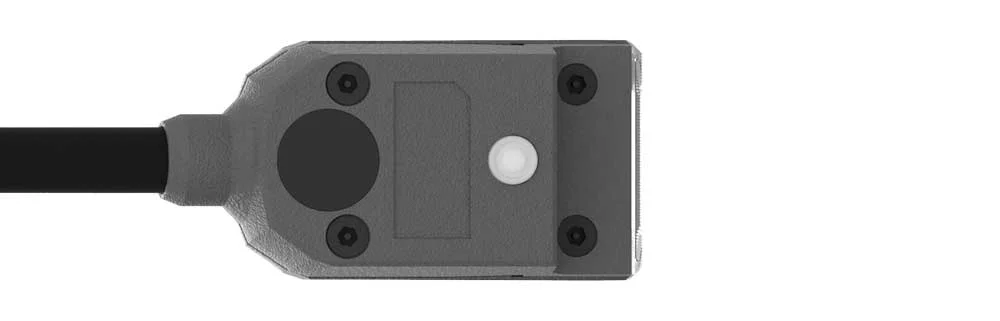

 The Control Button can be used to quickly select a Flash Power level by pressing it once, when in use.

The Control button is also used after disconnecting a Flash Lighting Arm from the Control Pod, hold the discharge button for 5-7 seconds to discharge any remaining power.

This is important to prolong the life of the product. QUICK START XENON FLASH Continue APP CONTROL More info (Opens in new tab)

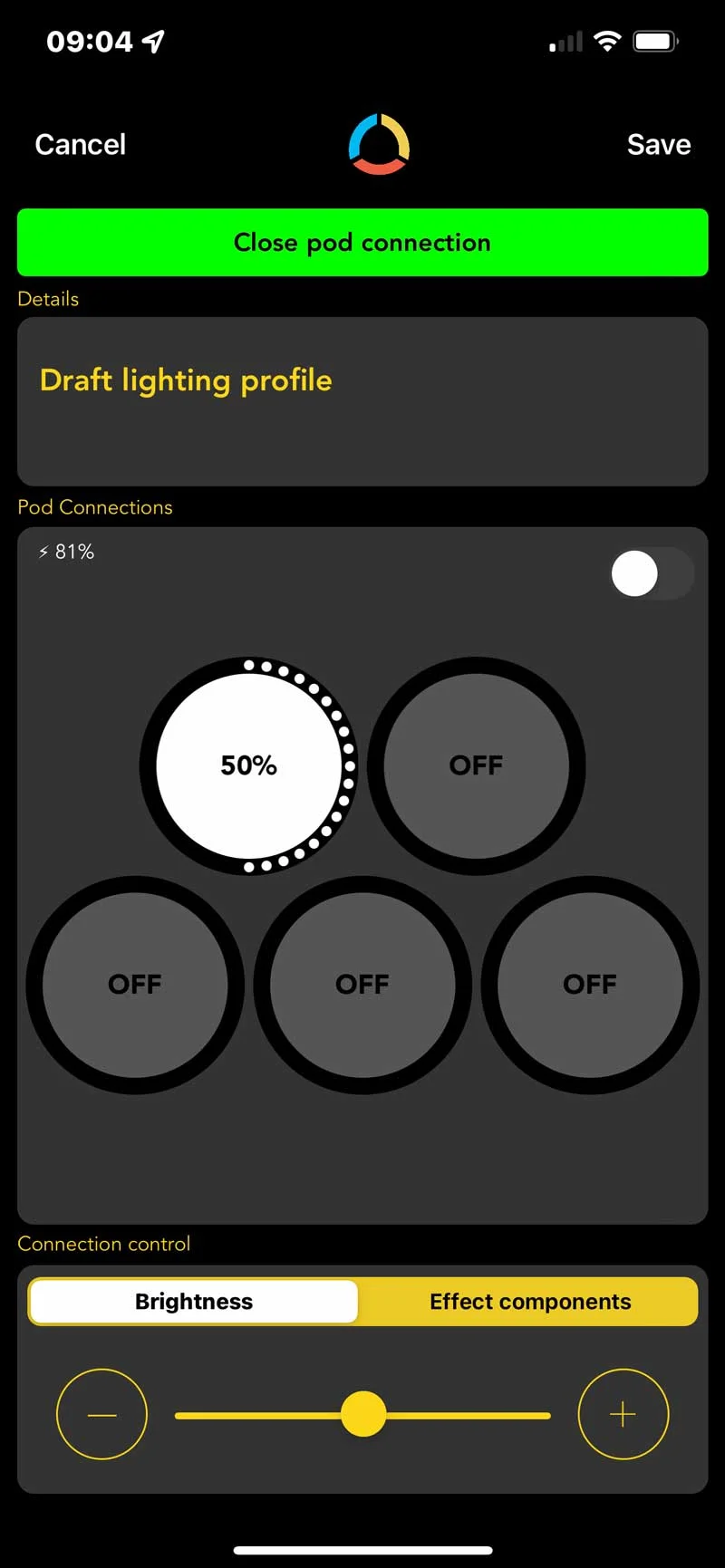

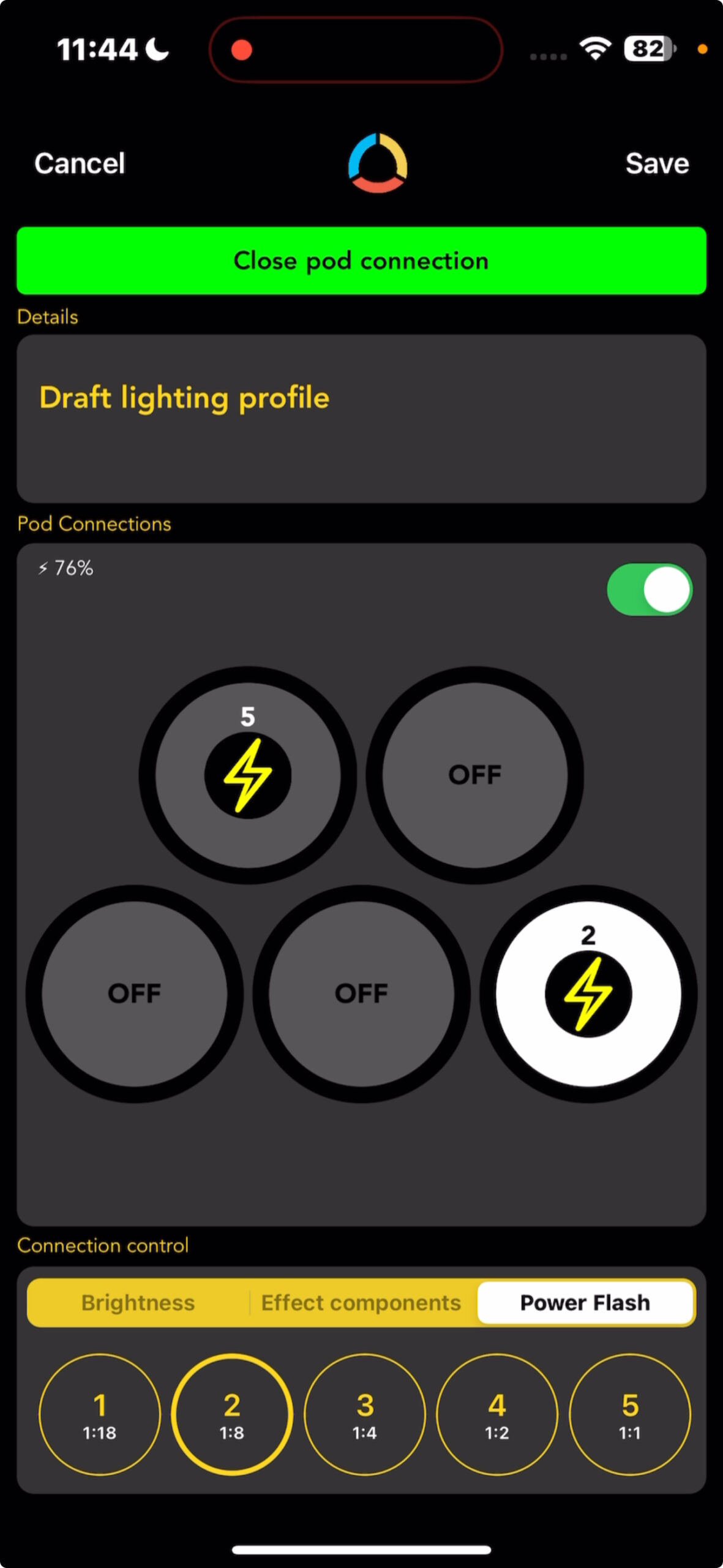

 App control is enabled for Xenon Flash Arms by selecting the flash symbol in the app interface. (iOS only)

Boost mode is automatically activated when selecting the Flash Symbol for a port.

Select a connected Flash Arm and then select a power level. The Flash Arm will load for a moment before selecting the desired Flash Level.

For information on connecting the Control Pod 3.0 to the app, please see the Control Pod Quick Start Guide. QUICK START XENON FLASH Continue REMOVING ARMS More info (Opens in new tab)

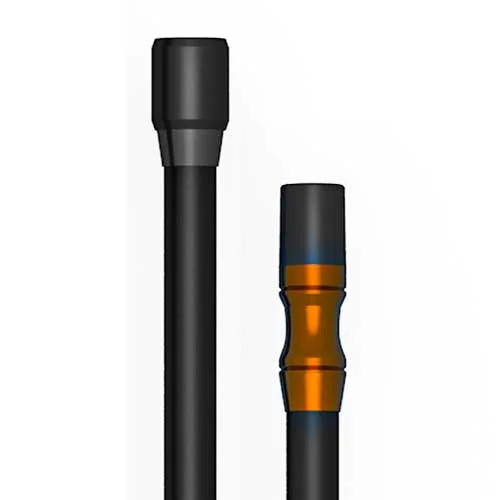

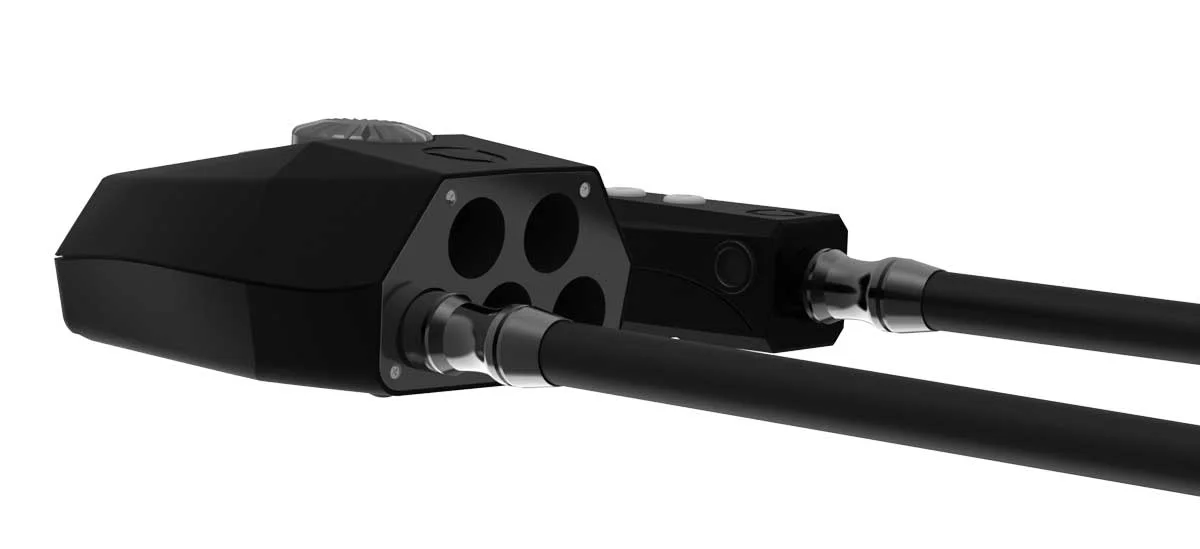

 Removing an arm is as simple as pulling it out of the port.

Don't twist! Just pull the arm away from the Pod.

Removing all arms will turn off the Pod automatically. QUICK START XENON FLASH Continue FLASH TRIGGER More info (Opens in new tab)

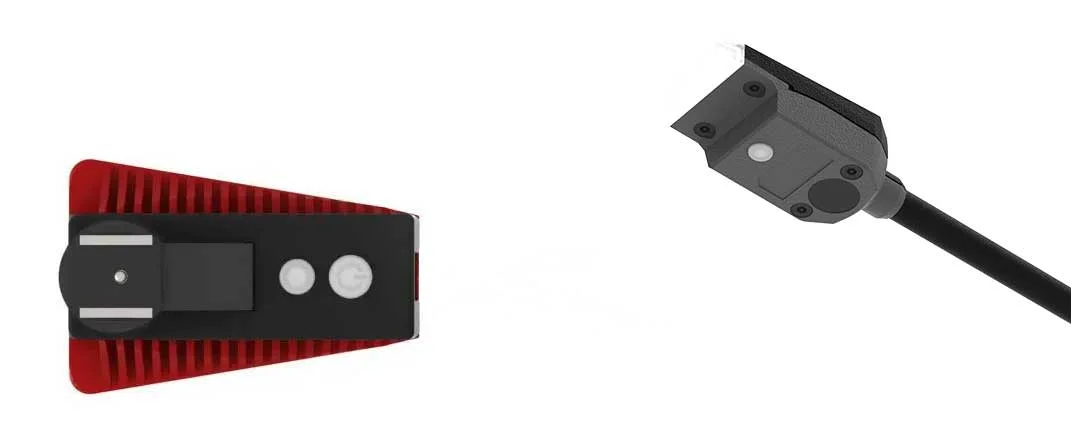

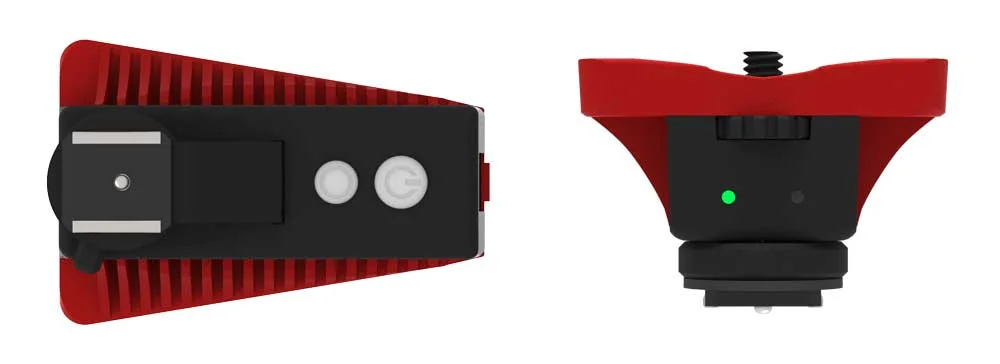

 The Flash Trigger, tells the Flash Arms when to fire in sync with your camera. It attaches to the camera hotshoe.

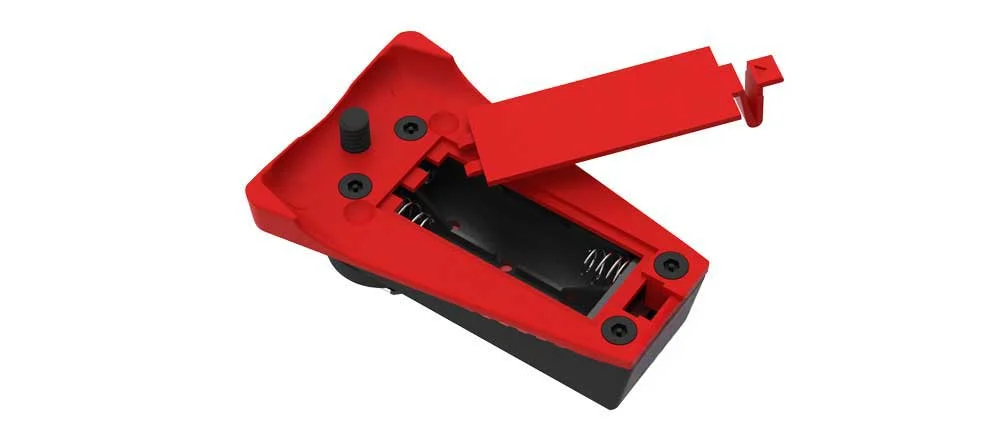

The Trigger is powered by 2x AAA batteries. Batteries are inserted via the battery flap.

It also comes with a battery removal tool, for easy battery removal. QUICK START XENON FLASH Continue TRIGGER POWER More info (Opens in new tab)
 Attach the Trigger to the camera hotshoe and tighten using the locking wheel.

Turn on the Trigger using the power button.

A green light will show at the rear of the Trigger when powered on. QUICK START XENON FLASH Continue RANGE More info (Opens in new tab)
 The Trigger uses Radio Communication with connected Flash Arms.

The recommended range is up to 3 metres.

Use the test button on the Trigger to test the position of the Flash Arms. QUICK START XENON FLASH Continue RECYCLE TIME More info (Opens in new tab)
 Flash Arms will fire automatically when the camera shutter is pressed.

Allow a short time between photos for the Flash Arms to recharge. This time will depend on the power setting been used.

The Control Pod 3.0 can be mounted to the Flash Trigger for on-camera lighting. QUICK START XENON FLASH Continue FLASH GELS More info (Opens in new tab)

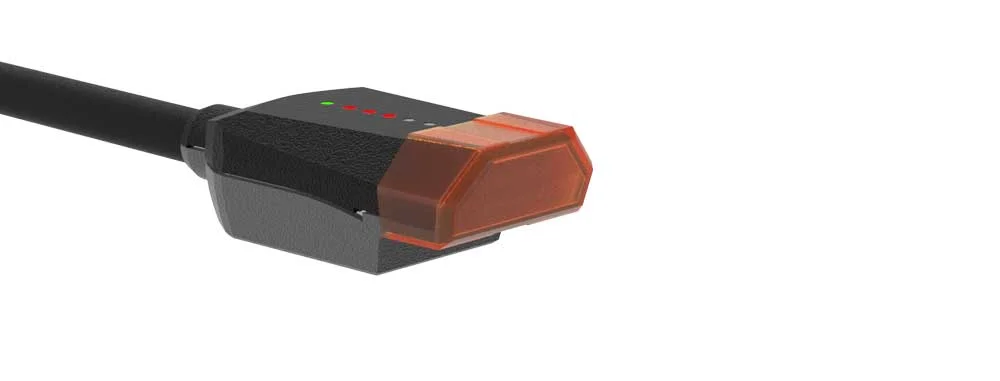

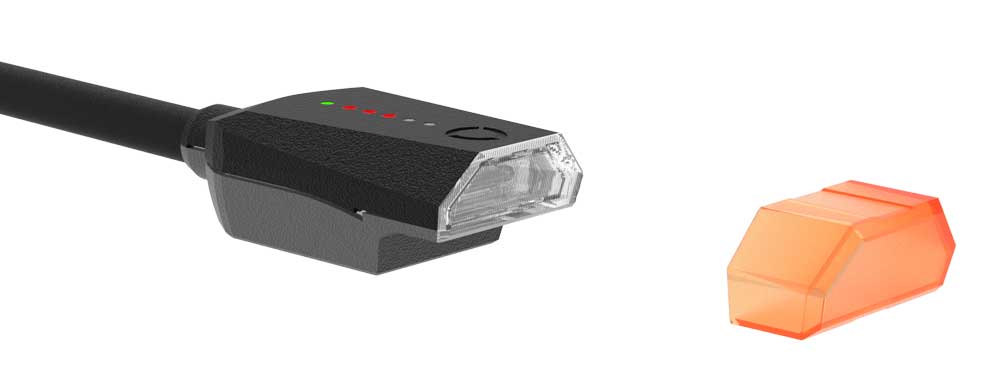

 Gels can be attached to Flash Lighting Arms to change the colour and diffusion of the light. QUICK START XENON FLASH Continue FLASH PRO HOODS More info (Opens in new tab)

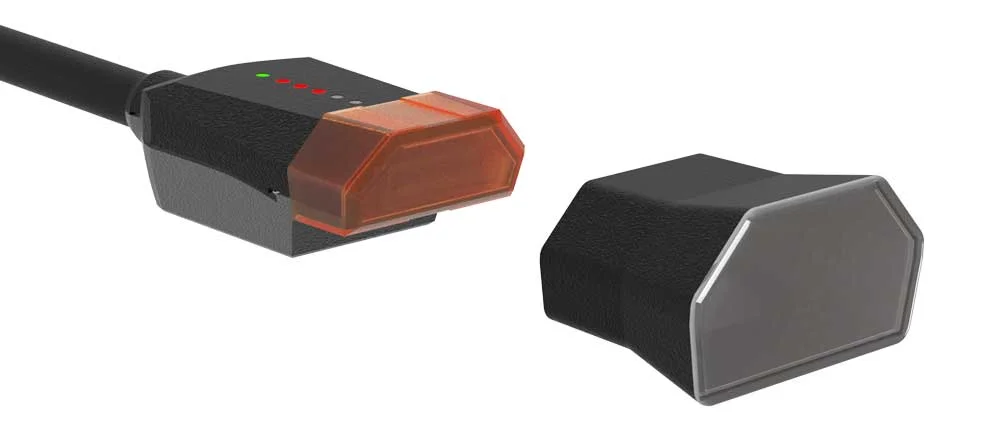

 Flash Hoods can be attached to the Flash Arms with or without a Gel.

Flash Hoods further modify and control the light.

Choose from a Area Diffuser, Directional Diffuser or a Honeycomb. QUICK START XENON FLASH QUICK START GUIDE Need more help or inspiration to get started?

Our blog is full of inspiration, tutorials and Ideas to get you started! EXIT TO VIDEO TUTORIALS Select another Product to continue learning about the Adaptalux System.

Return to this screen at any time by pressing the home button at the top left of the screen. Continue POD MINI LET'S GET TO KNOW YOUR NEW LIGHTING Continue CONTROL POD 3.0 Continue LED ARMS Continue FLASH ARMS home Adaptalux Bluetooth app Adaptalux App with Flash
