Lighting Arms are connected and controlled by a Pod.
The Pod Mini is our smallest and lightest Pod, with a single Lighting Arm port.
Your Mini may have a protective film over the front plate. Remove this before use.

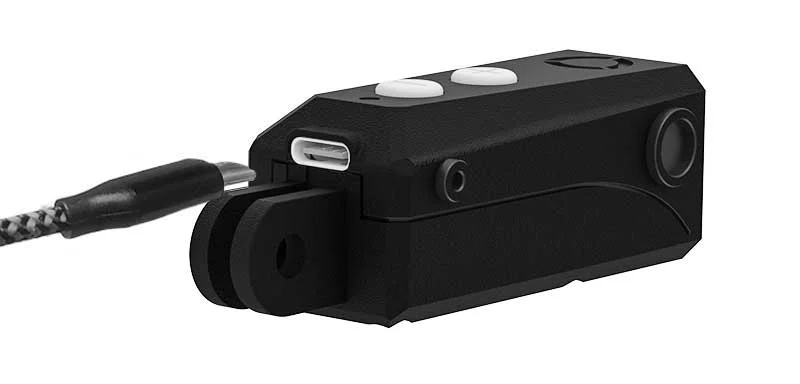

Use the provided USB-C cable to charge your Pod via the port at the rear.
(Slow pulsing Green light)
(Solid Green light)
(Fast flashing red light)
(Solid red light)
(Slow flashing red light)
The light will flash faster when the Pod battery is very low.
A solid red light means the battery is exhausted.
Make sure the Arm & Pod contacts are clean and free from obstruction.

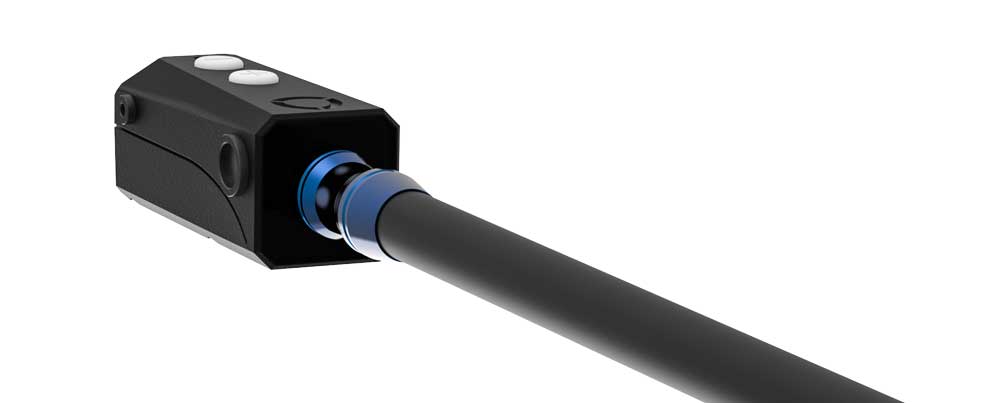

Connect an Arm to the Pod, you will feel a magnetic pull, rotate the arm until it locks into place.
The Lighting Arm will automatically illuminate at 50% brightness.

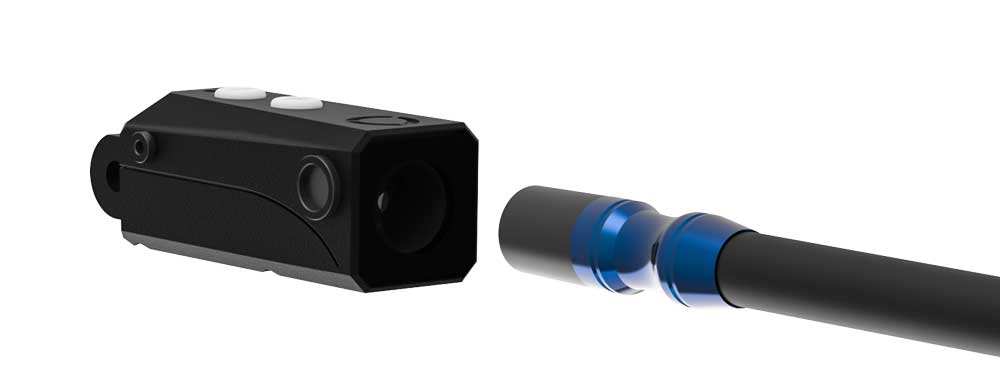

The Pod Mini will turn off automatically when you unplug the Arm.

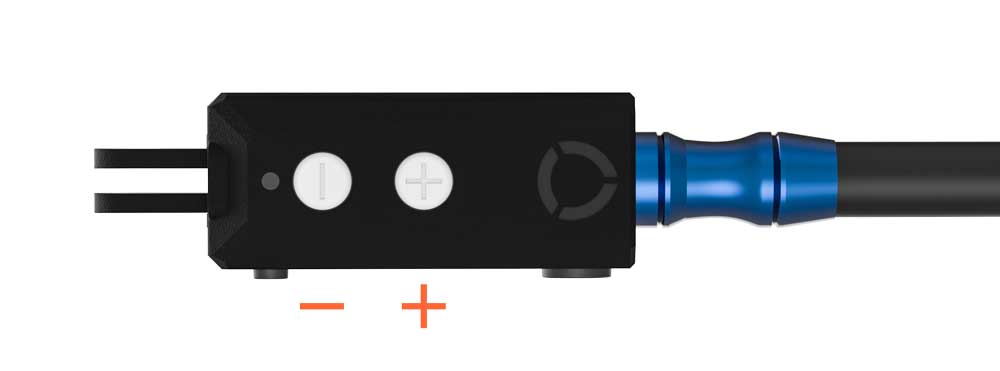

Hold the front + button to increase brightness.
Hold the rear - button to decrease brightness.

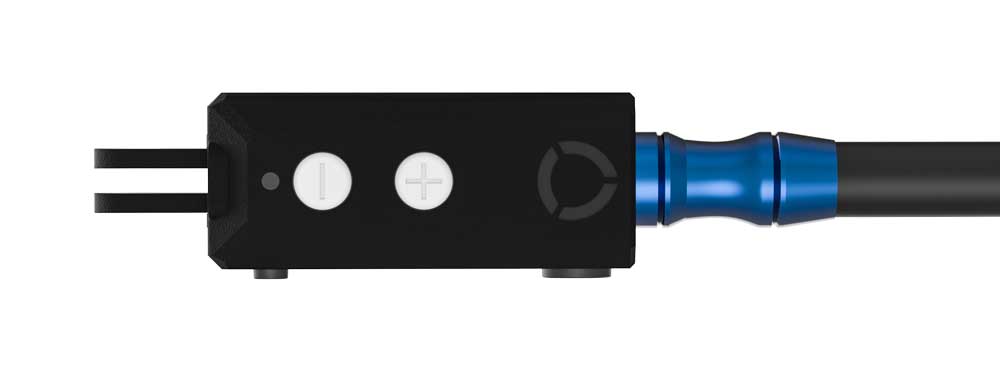

Tab both buttons at once to toggle boost mode on and off.
Boost Mode is essential to be turned on for Xenon Flash Arms.
Boost mode will turn off automatically when the Arm is removed.
Hold both buttons to toggle strobe mode! (Press - to cancel strobe).

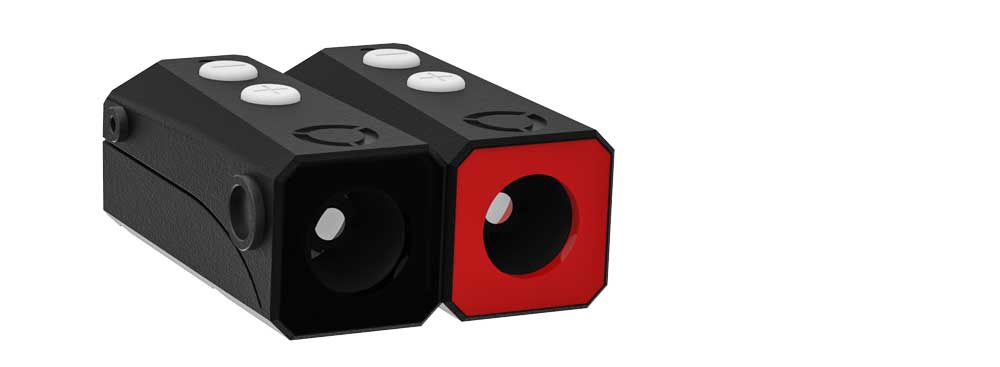

Firmly push the side of two Minis together to join them, pull apart again to separate them.
Stacked minis must be supported when adjusting Arms to avoid pulling them apart.
Minis can be mounted using the 1/4-20 tripod thread at the rear of the pod.
Our blog is full of inspiration, tutorials and Ideas to get you started!
